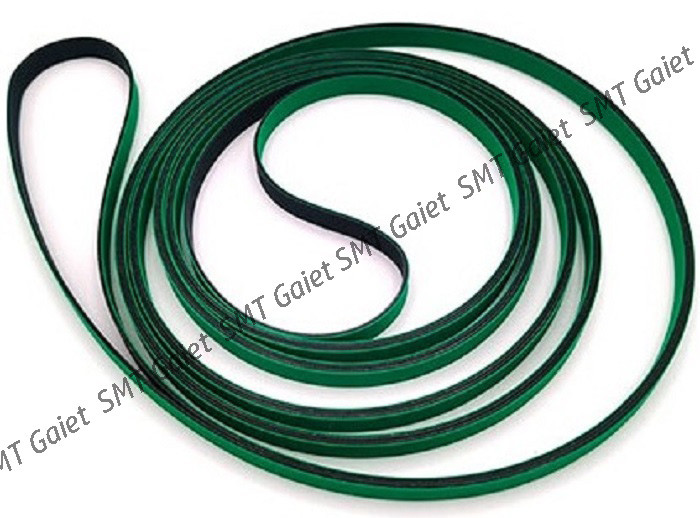

Assembleon Conveyor Belt 5322 358 10276

Part Name:Assembleon Conveyor Belt

Part Number:5322 358 10276

Model:Topaz

Assembleon Conveyor Belt 5322 358 10276 is applied for Assembleon SMT pick and place machines Topaz Series.

Assembleons Parts is as below,

5322 132 00036 Sensor Head

5322 132 00132 Sensor W origin

5322 132 00056 Sensor 1-3 (L=1150)

9965 000 06136 Sensor 1-3 (L=1400)

5322 130 10079 Sensor Presure

5322 693 11352 Spline assy (Complete spline shaft assy head 1)

5322 693 11199 Spline assy (Complete spline shaft heads 2-8, indicated with “Y” means 40 um accuracy)

5322 693 11539 Topaz Inner spline shaft heads 2-8

5322 693 11542 Inner Spline, 16 micron

5322 535 10674 Shaft head asyy (shaft head assy head 1-3-5-7 for SF and FNC head)

9965 000 03802 SHAFT NOZZLE HEAD

5322 535 10676 Shaft head assy (spline shaft assy 2-4-6-8 only for FNC head)

9965 000 10930 Spline Shaft, Even Heads, FNC

9965 000 10928 Spline Shaft, even Heads SF

9965 000 10929 Spline Shaft, Odd Heads SF and FNC

9965 000 10928 Spline Shaft, even Heads SF

9965 000 10929 Spline Shaft, Odd Heads SF and FNC

5322 216 04674 I/O Board for Topaz Xii (BD CNV)

9965 000 11067 I/O Core Board for Topaz Xii (BD)

5322 360 10483 Nozzle assy (nozzle assy heads 2-4-6-8)

5322 360 40523 Cylinder Main Stopper

5322 535 92541 Speed Controller

5322 360 40471 Cylinder sub stopper

5322 360 10205 Cylinder up/down

5322 526 40896 Joint

5322 502 60165 Screw (M2x3) leaf spring

5322 492 71713 Leaf spring

5322 492 11793 Leaf spring

5322 360 20081 Filter

5322 360 20106 MUFFLER

5322 530 70461 Circlip, shaft

5322 530 70526 CIRCLIP

5322 532 12547 Seal is located on the lower part of the piston shaft

5322 532 12545 Chevron seal used in Piston upper and lower plugs.

5322 532 12546 Chevron seal used in Piston assembly Packing

5322 532 13169 Packing

5322 530 51347 Packing,

5322 358 10173 Belt R-Axis Motor drive

5322 358 10174 Belt, R-Axis Spline

9965 000 09055 Belt, head

FAQ

Q1: How could I pay?

A1: T/T, Western Union,Paypal is ok.

Q2: What is the delivery lead time?

A2: Before shipping, we would check the SMT spare parts.Standard parts is normaly round 2~7 working days.

Q3: How to order?

A3: After you've decided what to buy, please send us your inquiry, we'll quote you a price, then you can place an order and we'll issue you invoice, on receving your payment, we'll begin to process your order and ship your order immediately.

Q4: How to ship order?

A4: For those package with large volume or very heavy package for exsample SMT feeder carts, in general we suggest you ship it by sea, else SMT nozzle, SMT feeder, SMT spare parts and so on we suggest by express companies such as UPS,DHL,TNT.Fedex...lease inform us which express you appoint to deliver and advise receiver's express account number, or you pay freight we’ll ship your order via ours.

Gaiet Electronics (SuZhou)Co., Ltd is in China specializing in designing and manufacturing SMT Spae Parts such as SMT NOZZLE,SMT FEEDER and related SMT Consumable.

"Integrity and Service," is our constant business philosophy.

Now, more than 100 customers from 20 countries have set up regular cooperative relationship with us.

Our company provide SMT Nozzle ,SMT Feeder, SMT Splice Tape, SMT Accessories, SMT Conveyor Belt, SMT Spare Parts, SMT FILTER, Anti Static Products, SMT Feeder Rack, Vibration Feeder, SMT Tools and SMT Splice Trolley.
